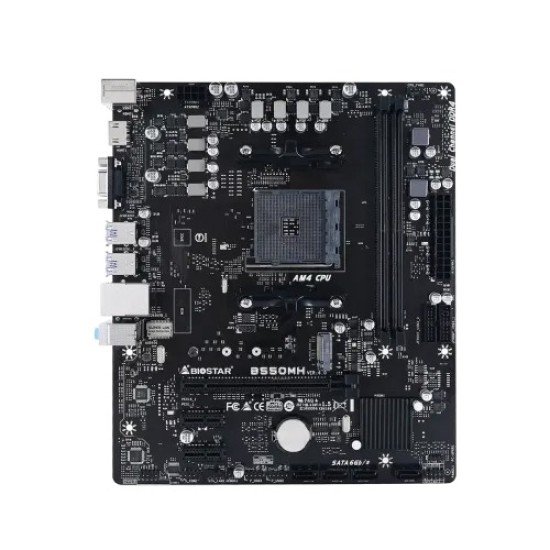

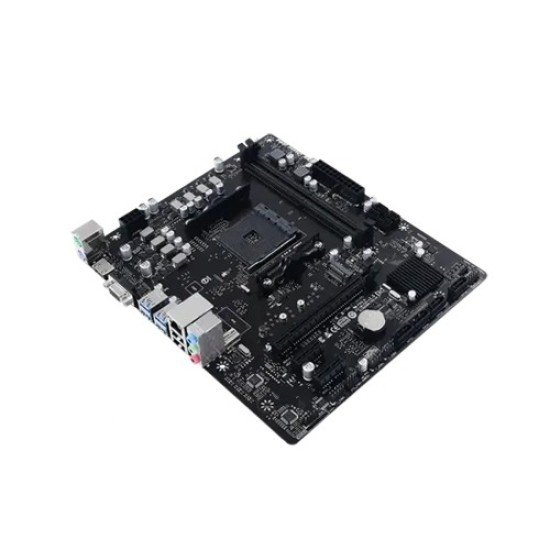

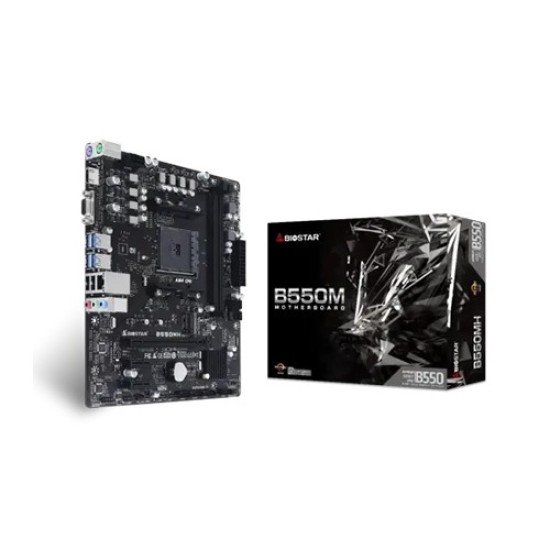

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
Save: 0৳
BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
  • Discount Price:
    8,500৳
  • Regular Price:
    8,500৳
  • Stock:
    In Stock
  • Brand: BIOSTAR
  • Model:
    B550MH
Based on 0 reviews. - Write a review

Payment Options

Buy Now
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

  • Supported CPU: Ryzen 3rd Gen and 4th Gen processors
  • Supported RAM: 2x DIMM, DDR4 4933+(OC)
  • Graphics Output: 1 x HDMI, 1 x VGA Port
  • Features: 1 x M.2 Slot, Realtek RTL8111H
View more info
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।

Also Bought

AMD Ryzen 7 5700X Processor
Quickview
AMD Ryzen 7 5700X Processor
18,500৳ 19,500৳
Ex Tax:18,500৳
Add to Cart Add to Wish List Compare this Product
Specification
Basic Information
Supported CPU Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
Chipset AMD B550
Form Factor Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
Audio ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)
Expansion Slots
PCI 1 x PCIe 4.0/ 3.0 x 16 Slot:
Supports PCIe 4.0 x 16 mode with AMD Ryzen processors. (Matisse only)
Supports PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors. (Renoir only)
2 x PCIe 3.0 x 1 Slot
Graphics
Graphics By CPU model
Supports DX12
Supports HDCP
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
Maximum Memory Up to 64 GB
Connector & Ports
VGA (s) 1 x VGA Port
HDMI HDMI
USB (s) 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
LAN Port (s) Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
Supported Storage 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIe-SATA1):
The bandwidth is depended on CPU.
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.
Internal I/O Ports 4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
Others
Bundled Software BullGuard
Warranty Information
Warranty 3 Years
