| General | |
| Printer Type | Barcode Label Printer |
| Technical Specifications | |
| Memory | 128MB SDRAM Flash Storage 256MB |
| Connectivity | USB |
| Power Consumption | 100-240VAC, 50-60Hz |
| Technology | Thermal Transfer & Direct Thermal |
| Print Speed | Speed 152 mm/sec widght 104 mm |
| Print Resolution | 203 dpi/8 dots per mm |
| Paper Information | |
| Paper Type | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands Tape Size127 mm Maximum Tape Width112 mm Max. Label Length 991 mm |
| Special Features | |
| Others | Font- 16 resident expandable ZPL II bitmap fonts, Two resident scalable ZPL fonts, Five resident expandable EPL2 fonts Barcode - 1D Bar Codes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code, 2D Bar Codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Physical Specification | |
| Color | Black |
| Dimensions | Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal 8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H |
| Weight | 2.5 lbs |
| Warranty Information | |
| Manufacturing Warranty | 1 Year Service only (No Warranty for Print Head & Adapter) (Box Mandatory While Claiming) |

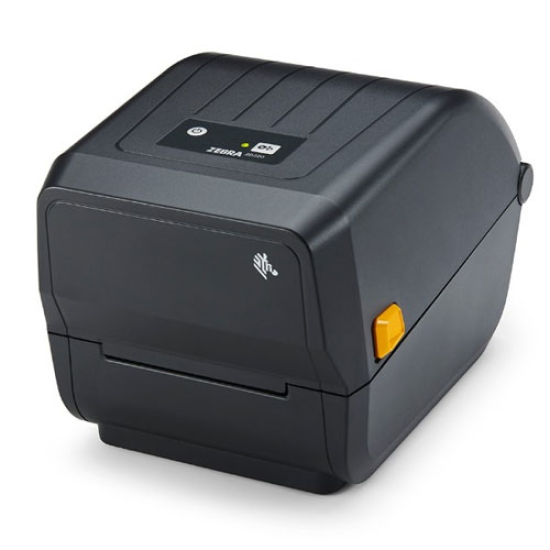

The Zebra ZD230 is a barcode label printer. It is very simple to install and begin printing. It uses ZPL and EPL programming languages. It has built-in factory-installed USB. It can accommodate a 300m ribbon roll to lengthen the time between media changes. The 4-inch printer produces labels quickly, up to 6 per second. To make it easy to operate and identify printer status, a single LED indicator and a single button for feed/pause have been used. It can print at the resolution of 203 dpi/8 dots per mm. A movable black mark sensor, limited range from centre to left side and Fixed off-centre gap sensor has been used in this barcode printer. A factory-installed peeler or cutter has been used for media handling. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts. It has a 1 Year Service only (No Warranty for Print Head & Adapter) (Box Mandatory While Claiming).
The latest price of Zebra ZD230 Barcode Printer in Bangladesh is 16,500৳. You can buy the Zebra ZD230 Barcode Printer at best price from our website or visit our showroom.
