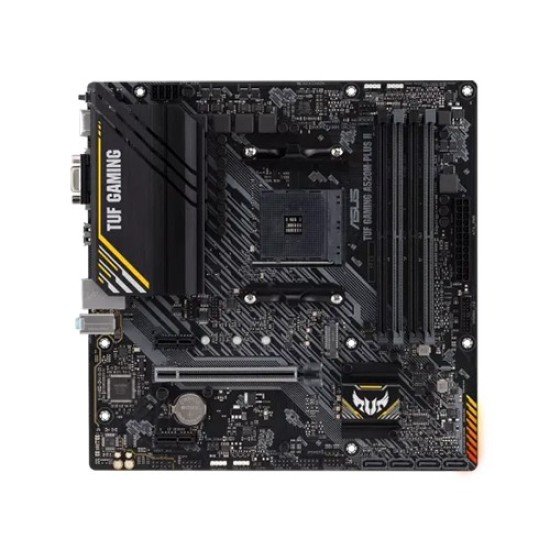

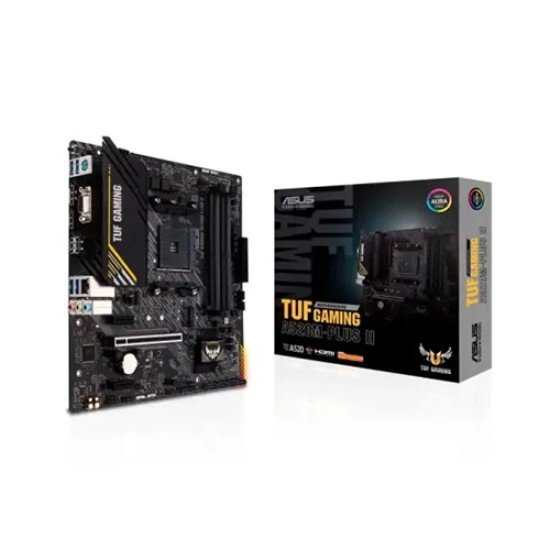

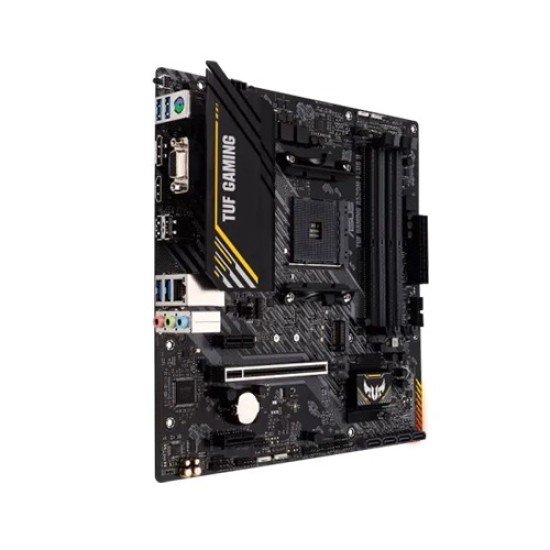

ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD

ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
Save: 940৳
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
  • Discount Price:
    12,300৳
  • Regular Price:
    13,240৳
  • Stock:
    In Stock
  • Brand: Asus
  • Model:
    TUF GAMING A520M-PLUS II
Based on 0 reviews. - Write a review

Payment Options

Buy Now
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

  • Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
  • Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
  • Features: Onboard RGB headers
View more info
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।

Recently view

Asus ROG STRIX B850-I GAMING WIFI AMD AM5 Mini-ITX Motherboard
Quickview
Asus ROG STRIX B850-I GAMING WIFI AMD AM5 Mini-ITX Motherboard
49,000৳ 52,000৳
Ex Tax:49,000৳
Add to Cart Add to Wish List Compare this Product
ASUS TUF Gaming VG249QL3A 23.8 Inch 180Hz FHD Gaming Monitor
Quickview
ASUS TUF Gaming VG249QL3A 23.8 Inch 180Hz FHD Gaming Monitor
26,500৳ 28,890৳
Ex Tax:26,500৳
Add to Cart Add to Wish List Compare this Product

Also Bought

AMD Ryzen 5 3400G Processor with Radeon RX Vega 11 Graphics
Quickview
AMD Ryzen 5 3400G Processor with Radeon RX Vega 11 Graphics
9,300৳ 9,800৳
Ex Tax:9,300৳
Add to Cart Add to Wish List Compare this Product
MSI A520M-A Pro AM4 Micro-ATX AMD Motherboard
Quickview
MSI A520M-A Pro AM4 Micro-ATX AMD Motherboard
7,000৳ 8,500৳
Ex Tax:7,000৳
Add to Cart Add to Wish List Compare this Product
Wintech PRO BOX V7 BK Desktop Case With Power Supply
Quickview
Wintech PRO BOX V7 BK Desktop Case With Power Supply
2,050৳ 2,700৳
Ex Tax:2,050৳
Add to Cart Add to Wish List Compare this Product
AITC Kingsman Innovator CL16 8GB DDR4 3200MHz Gaming Desktop RAM | Black
Quickview
AITC Kingsman Innovator CL16 8GB DDR4 3200MHz Gaming Desktop RAM | Black
6,000৳ 9,000৳
Ex Tax:6,000৳
Add to Cart Add to Wish List Compare this Product
Specification
Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
Form Factor microATX
24.4cm x 24.4cm
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback" Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Graphics
Graphics 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60Hz)
1 x D-Sub
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
Maximum Memory 128GB
Connector & Ports
D-Sub (s) 1 x D-Sub
Display Port (s) 1 x DisplayPort
HDMI 1 x HDMI port
USB (s) 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
TUF LANGuard
Supported Storage AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset:
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP
) 1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Warranty 3 Years
