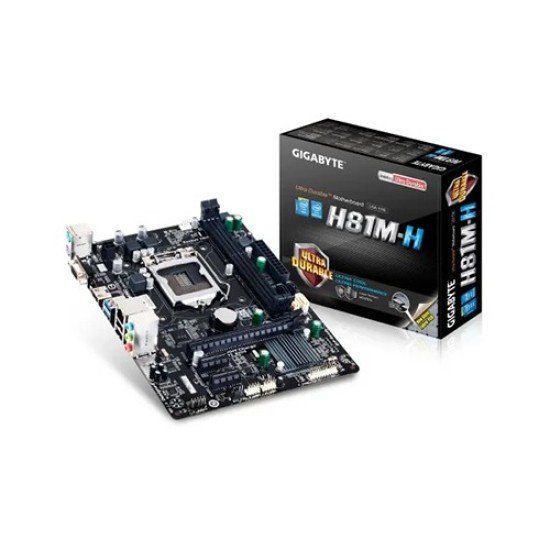

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
Save: 640৳
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
  • Discount Price:
    8,800৳
  • Regular Price:
    9,440৳
  • Stock:
    In Stock
  • Brand: Gigabyte
  • Model:
    GA-H81M-H
Based on 0 reviews. - Write a review

Payment Options

Buy Now
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

  • Supported CPU: 4th Generation Intel Core processors (LGA1150)
  • Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: LAN with high ESD Protection
View more info
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।
Specification
Basic Information
Supported CPU Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset Intel H81 Express Chipset
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
BIOS 1 x 32 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
Graphics
Graphics Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Max Shared Memory 1 GB
Memory
Type DDR3
Slots 2 x 1.5V DIMM sockets
Supported Memory Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 16 GB

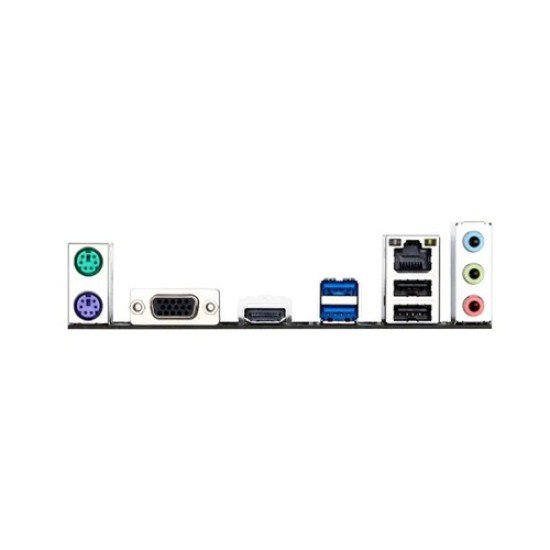

Connector & Ports
D-Sub (s) 1 x D-Sub
HDMI 1 x HDMI
USB (s) Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Others
Special Features Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2
Support for ON/OFF Charge
Warranty Information
Warranty 3 Years
