Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard

Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Save: 2300৳ Out Of Stock
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
Colorful CVN B760I FROZEN WIFI V20 LGA 1700 ITX Motherboard
  • Stock:
    Out Of Stock
  • Brand: Colorful
  • Model:
    CVN B760I FROZEN WIFI V20

Key Features

  • Model: CVN B760I FROZEN WIFI V20
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 4800(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: RTL8125 2.5Gbit network card, WiFi 6 wireless
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।
Specification
Basic Information
Supported CPU Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Chipset Intel B760
Form Factor ITX
170mm x 170mm
Audio 5.1 Channel sound card
BIOS 128M UEFI, supporting multiple languages
Expansion Slots
PCI 1 PCIe 5.0 x16 slot
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Memory
Type DDR4
Slots 2
Supported Memory - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory
- support Intel Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
Maximum Memory up to 64 GB of memory (a single socket can support up to 32 GB of memory)
Connector & Ports
Display Port (s) 1x DisplayPort
Wireless Communication module AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2
HDMI 1x HDMI
LAN Port (s) RTL8125 2.5Gbit network card
Supported Storage A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
- M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
RAID See the official BIOS user guide of Colorful for the steps to create a RAID disk array

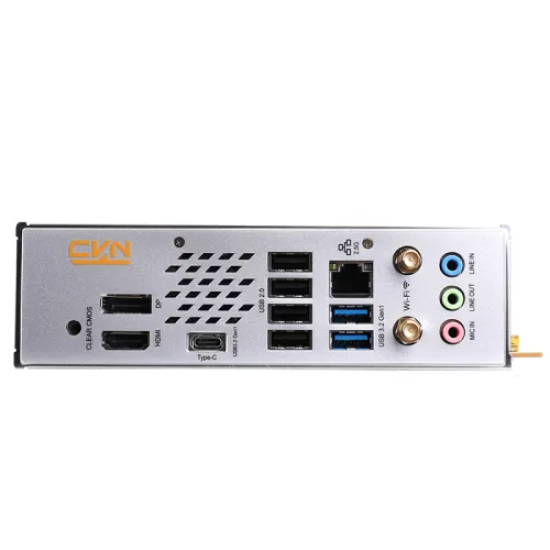

Internal I/O Ports Rear I/O interface:
- 4 USB 2.0 interfaces
- 2 USB 3.2 Gen 1 Type-A interfaces
- 1 USB 3.2 Gen 1 Type-C interface
- 1 DP 1.2 interface, supporting up to 4K 60Hz resolution
- 1 HDMI 2.0 interface, Up to 4K 60Hz resolution
- 1 2.5G network interface
- 2 Wi-Fi 6 antenna interfaces
- 3 audio interfaces (audio input/audio output/microphone)
- 1 clear CMOS button
On board device interface:
- 1 CPU fan pin
- 1 system fan pin
- 1 water-cooled pump pin
- 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
- 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
- 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface
- 1 5V 3-pin ARGB pin
- 1 front audio pin
- 1 front panel pin
- 1 speaker pin
Warranty Information
Warranty 3 years
Description

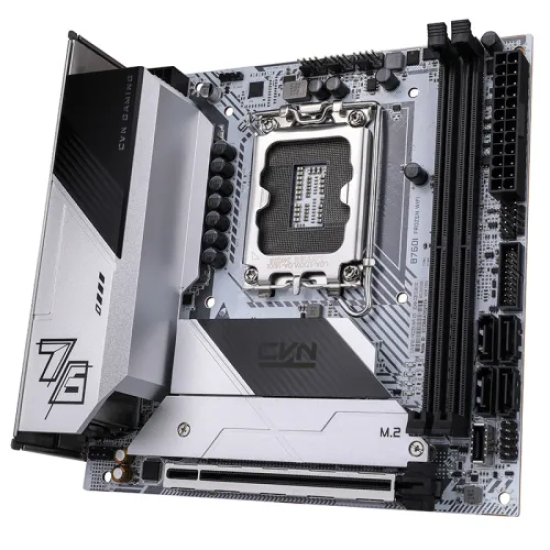

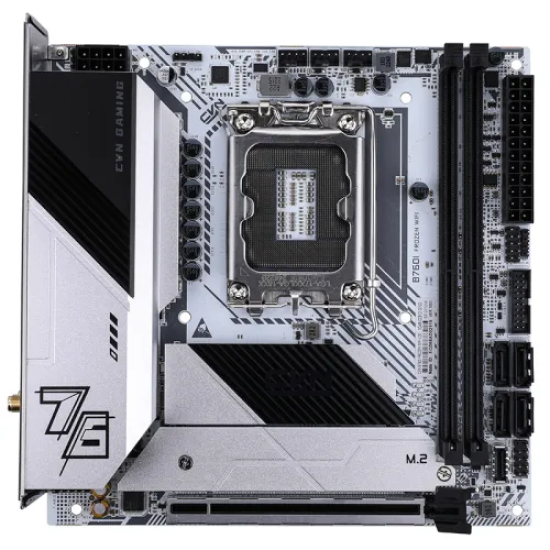

Colorful CVN B760I FROZEN WIFI V20 ITX Motherboard

The Colorful CVN B760I FROZEN WIFI V20 Motherboard is a dynamic and high-performance solution designed for both enthusiasts and gamers. This motherboard, notable for its Colorful CVN series tailored frost cooling armor, has complete coverage condensing fins, increasing heat dissipation to provide maximum performance throughout demanding jobs and intensive gaming sessions. With two PCIe 4.0 x4 M.2 SSD slots, customers may experience lightning-fast data transfer speeds and accommodate high-speed storage options. One USB 3.2 Gen 1 Type-C and two USB 3.2 Gen 1 Type-A high-speed back connectors allow quick data transfers and diverse peripheral connections. This motherboard is well-equipped for networking, with a Realtek 2.5G high-speed wired network card and an AX201/AX200 WiFi 6 wireless network card that supports Bluetooth 5.2 for smooth communication. The iGame Center light efficiency control program, which is included, allows users to tailor their setup by simultaneously modifying the lighting of the radiator, cooling fan, and memory for a visually appealing gaming experience. Stability is prioritized, with six protective mechanisms contributing to dependable product functioning and hardware protection. The CVN B760I WIFI V20 Motherboard is subjected to a thorough testing procedure encompassing 200 demanding tests, providing guaranteed quality and satisfying high-performance criteria. The PCB atomization process is a thorough update that improves overall durability and efficiency. This motherboard combines cutting-edge features, bright aesthetics, and powerful performance, making it a fantastic choice for customers looking for a high-quality, visually appealing basis for their PC build.

Buy Colorful CVN B760I FROZEN WIFI V20 ITX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard From ONE STOP SOLUTION. We have a large collection of the latest Colorful Motherboard to purchase for your DESKTOP PC. Order Online Or Visit our Nearest SHOP to get yours at the lowest price. The Colorful CVN B760I FROZEN WIFI V20 Motherboard comes with 3 years warranty.

What is the price of Colorful CVN B760I FROZEN WIFI V20 Motherboard in Bangladesh?

The latest price of Colorful CVN B760I FROZEN WIFI V20 Motherboard in Bangladesh is 19,500৳. You can buy the Colorful CVN B760I FROZEN WIFI V20 Motherboard at best price from our website or visit our showroom.
