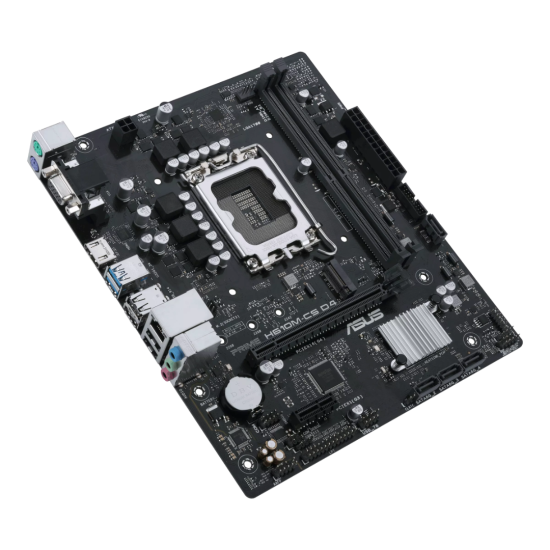

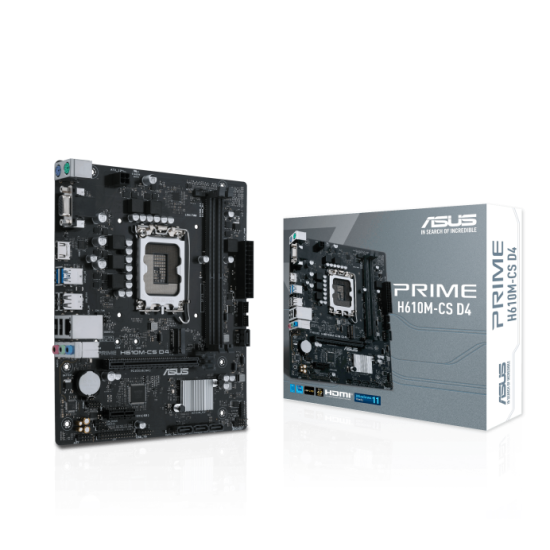

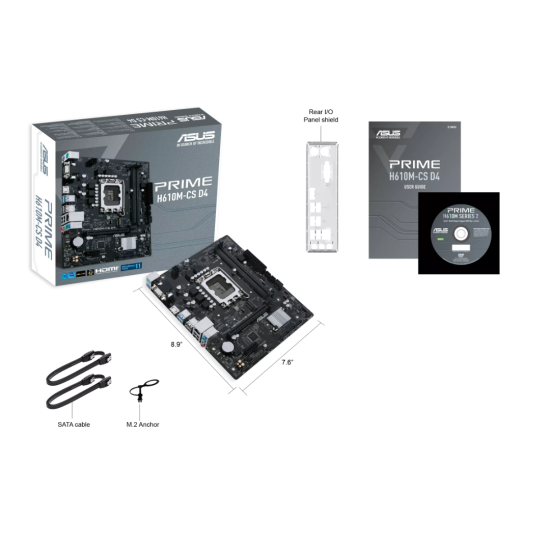

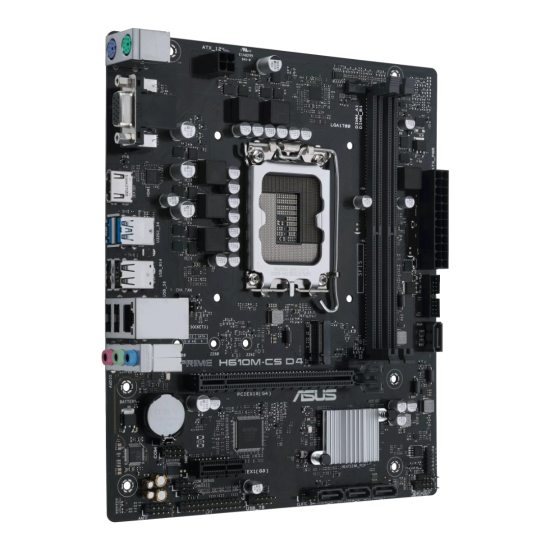

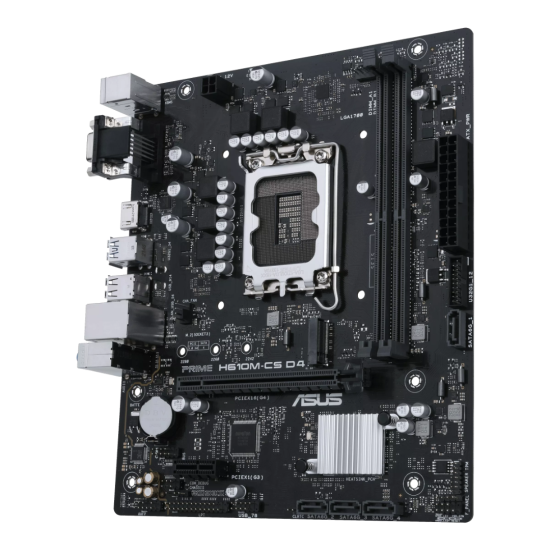

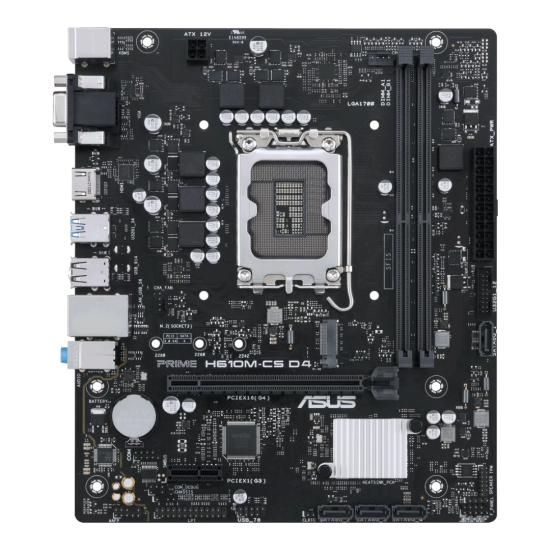

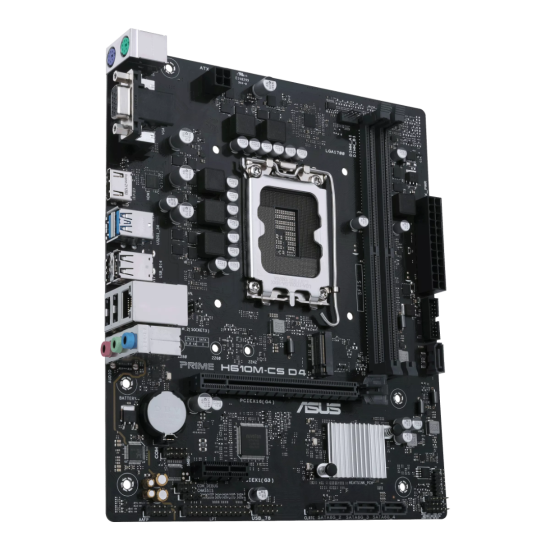

Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard

Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Save: 1400৳
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard
  • Discount Price:
    10,300৳
  • Regular Price:
    11,700৳
  • Stock:
    In Stock
  • Brand: Asus
  • Model:
    PRIME H610M-CS D4

Payment Options

Key Features

  • Model: PRIME H610M-CS D4
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 64GB, DDR4
  • Graphics Output: 1 x VGA, 1 x HDMI
  • Features: 1 x Realtek 1Gb Ethernet
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।
Specification
Basic Information
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
Form Factor mATX Form Factor
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
PCI Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
M.2 Socket 1 x M.2 slot
Graphics
Graphics 1 x VGA port
1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMITM 2.1.
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 64GB
Connector & Ports
Audio 3 x Audio jacks
VGA (s) 1 x VGA port
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Internal I/O Ports Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

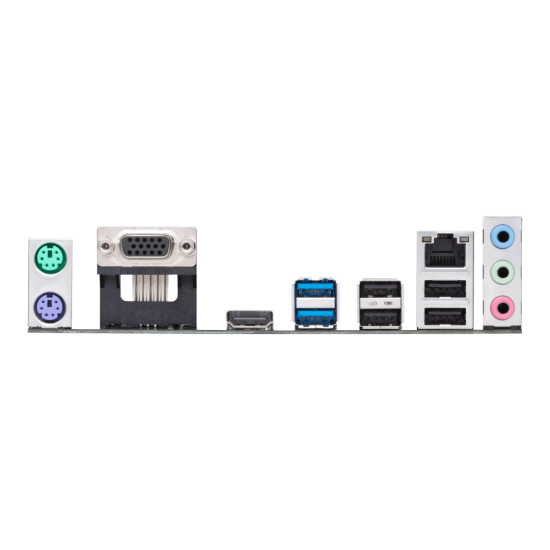

Back Panel I/O Ports
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
USBGuard
Bundled Software ASUS Exclusive Software
Armoury Crate
AI Suite 3
EPU
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Warranty 3 Years
Description

Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard

The Asus PRIME H610M-CS D4 mATX Motherboard is a versatile and reliable micro-ATX motherboard designed to accommodate Intel's latest 12th, 13th, and 14th generation processors with its LGA1700 socket. Boasting an Intel H610 chipset, this motherboard is equipped with modern features tailored for seamless computing experiences. Key features include DDR4 memory support, PCIe 4.0 compatibility, and an M.2 slot for ultra-fast storage solutions. Connectivity options are abundant with Realtek 1 Gb Ethernet, HDMI, D-Sub, and USB 3.2 Gen 1 ports, ensuring smooth data transfer and peripheral connectivity. For enhanced durability and longevity, the Motherboard is fortified with 5X Protection III, incorporating multiple hardware safeguards to protect against various hazards. Additionally, a comprehensive cooling solution is provided by a dedicated PCH heatsink, ensuring optimal thermal performance under heavy workloads. he luminous anti-moisture coating, which shields critical components from moisture and corrosion, thereby prolonging the lifespan of the motherboard. This coating adds an extra layer of protection, making the motherboard suitable for diverse environmental conditions. The Asus PRIME H610M-CS D4 mATX Motherboard offers a balance of performance, connectivity, and durability, making it an ideal choice for a wide range of computing needs, from everyday tasks to gaming and content creation.

Buy Asus PRIME H610M-CS D4 LGA 1700 Micro ATX Motherboard Shop in BD

In Bangladesh, you can get original Asus PRIME H610M-CS D4 mATX Motherboard From ONE STOP SOLUTION. We have a large collection of latest Asus Motherboard to purchase for your DESKTOP PC. Order Online Or Visit our SHOP to get yours at lowest price. The Asus PRIME H610M-CS D4 mATX Motherboard comes with 3 years warranty.

What is the price of Asus PRIME H610M-CS D4 Motherboard in Bangladesh?

The latest price of Asus PRIME H610M-CS D4 Motherboard in Bangladesh is 10,300৳. You can buy the Asus PRIME H610M-CS D4 Motherboard at best price from our website or visit our showroom.
