- Discount Price:
17,100৳ - Regular Price:
18,500৳ - Stock:
In Stock - Brand: Asus
- Model:
PRIME H610I-PLUS
Payment Options
Key Features
- Model: PRIME H610I-PLUS
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 3200
- Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
- Features: 1 x Realtek 1Gb Ethernet
| Basic Information | |
| Supported CPU |
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot |
| M.2 Socket | 1 x M.2 slots |
| Graphics | |
| Graphics | Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
| Memory | |
| Type | DDR5 |
| Slots | 2x DIMM |
| Supported Memory | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 96GB |
| Connector & Ports | |
| Audio | 3x Audio jacks |
| Display Port (s) | 1 x DisplayPort |
| VGA (s) | 1 x VGA port |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| HDMI | 1 x HDMI port |

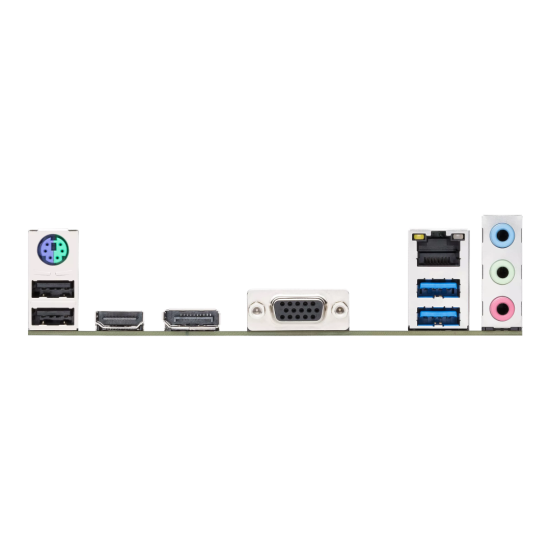

| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| LAN Port (s) | 1 x Intel 1Gb Ethernet port |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Internal I/O Ports |
Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Warranty Information | |
| Warranty | 3 Years |

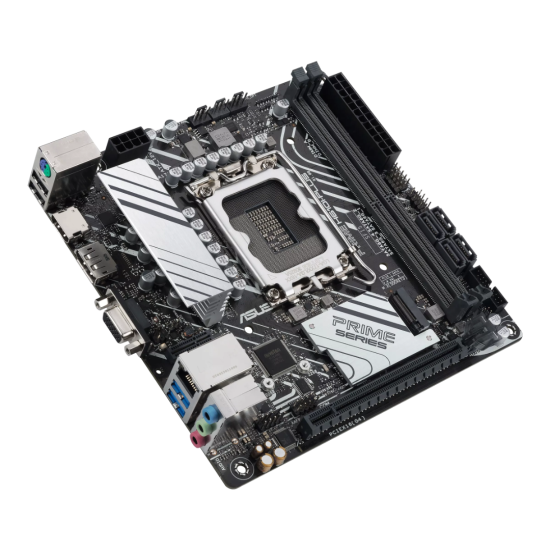

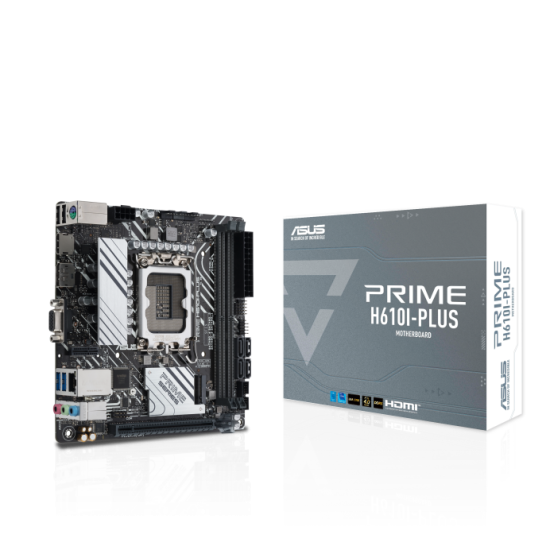

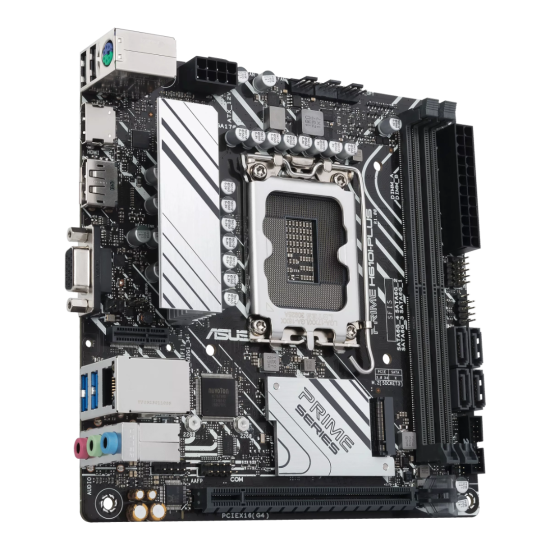

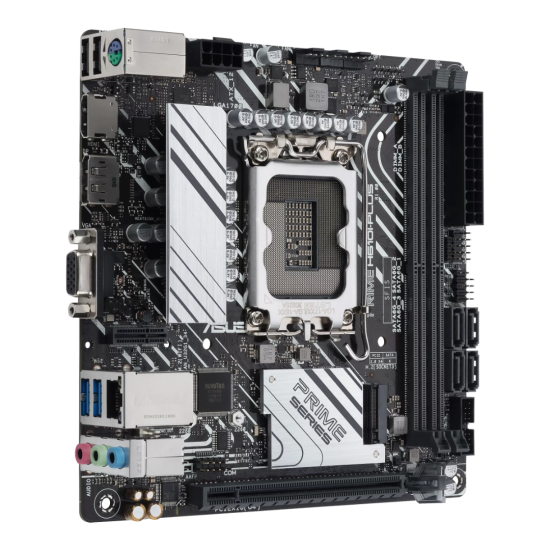

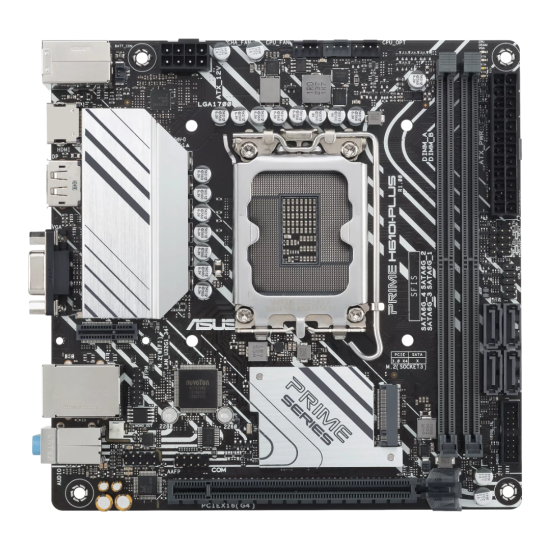

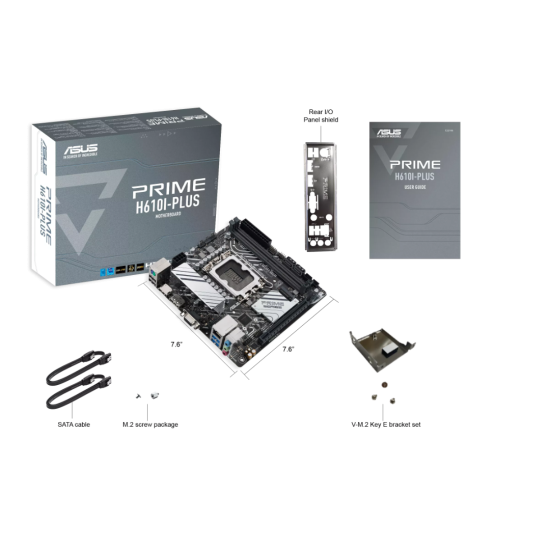

ASUS PRIME H610I-PLUS LGA 1700 DDR5 Mini ITX Motherboard
The ASUS PRIME H610I-PLUS DDR5 is a compact and feature-rich Mini ITX motherboard designed for users seeking high performance in a small form factor. Based on the Intel H610 chipset, it supports the latest DDR5 memory technology, offering speeds up to 5600 MHz. Compatible with 14th, 13th, and 12th Gen Intel Core processors through its LGA 1700 socket, it provides a wide range of CPU options for various performance needs. The Motherboard boasts an enhanced power solution with 5+1+1 DrMOS power stages, ensuring stable and efficient power delivery to the CPU and other critical components. Cooling is comprehensively managed through VRM and PCH heatsinks, complemented by Fan Xpert, ensuring the system stays cool under load. For connectivity, the motherboard includes a 32Gbps M.2 slot for high-speed storage solutions, Intel 1 Gb Ethernet for reliable network connectivity, and multiple USB 3.2 Gen 1 ports for fast data transfer and peripheral connectivity. Display options are versatile, with support for DisplayPort, HDMI, and D-Sub, catering to various monitor setups. Storage needs are met with SATA 6 Gbps ports, and additional peripheral connectivity is facilitated through a COM header and Mono-out header with Amp IC. The ASUS PRIME H610I-PLUS DDR5 also incorporates 5X Protection III, which includes multiple hardware safeguards to ensure all-around protection and durability, enhancing the longevity and reliability of the motherboard. This well-rounded motherboard combines cutting-edge technology with robust features, making it an excellent choice for building a compact yet powerful PC.
Buy ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard from ONE STOP SOLUTION
In Bangladesh, you can get original ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard From ONE STOP SOLUTION. We have a large collection of latest Asus Motherboard to purchase for your DESKTOP PC. Order Online Or Visit our SHOP to get yours at lowest price. The ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard comes with 3 years warranty.
What is the price of ASUS PRIME H610I-PLUS DDR5 Motherboard in Bangladesh?
The latest price of ASUS PRIME H610I-PLUS DDR5 Motherboard in Bangladesh is 17,100৳. You can buy the ASUS PRIME H610I-PLUS DDR5 Motherboard at best price from our website or visit our showroom.
