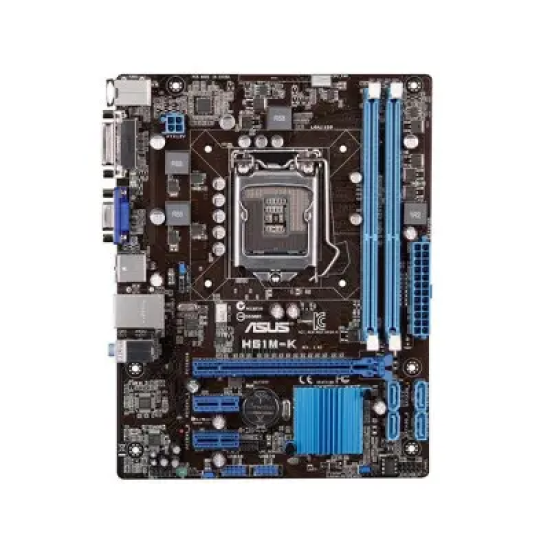

ASUS H61M-K 2nd/3rd Gen Supported Motherboard

ASUS H61M-K 2nd/3rd Gen Supported Motherboard
ASUS H61M-K 2nd/3rd Gen Supported Motherboard
Save: 1550৳
ASUS H61M-K 2nd/3rd Gen Supported Motherboard
ASUS H61M-K 2nd/3rd Gen Supported Motherboard
ASUS H61M-K 2nd/3rd Gen Supported Motherboard
  • Discount Price:
    7,450৳
  • Regular Price:
    9,000৳
  • Stock:
    In Stock
  • Brand: Asus
  • Model:
    H61M-K
Based on 0 reviews. - Write a review

Payment Options

Buy Now
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

  • Model : H61M-K
  • Chipset: Intel H61 Express Chipset for Intel 3rd/2nd Generation
  • Socket: LGA1155
  • Memory: 2 x DIMMs, max. 16GB, DDR3
  • Storage: 4 x Serial ATA 3 Gb/s connectors
View more info
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।
Specification
Basic Information
Supported CPU LGA1155 socket for Intel 3rd/2nd Generation CoreTM i7, CoreTM i5, CoreTM i3, Pentium, and Celeron processors
Supports Intel 22nm/32nm CPU
Supports Intel Turbo Boost Technology 2.0
⚫ Up to 77W Thermal Design Power support.
⚫ The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
• Refer to www.asus.com for Intel CPU support list.
Chipset Intel H61 Express Chipset
Form Factor ATX form factor: 8.9 in x 6.9 in (22.6 cm x 17.5 cm)
Audio Realtek ALC887 8-channel High Definition Audio CODEC
⚫ Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
BIOS 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.7, SLP 3.0, EUP-ready, Multi-language BIOS, ASUS EZ Flash 2, ASUS
CrashFree BIOS 3, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Memory
Slots 1 x PCI Express 3.0*/2.0 x16 slot
2x PCI Express 2.0 x1 slots
• PCIe 3.0 speed is supported by Intel 3rd generation Core processors.
Supported Memory 2 x DIMMs, max. 16GB, DDR3 1600/1333/1066 MHz, non-ECC, un- buffered memory
Dual-channel memory architecture
. Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
. When you install a total memory of 4GB capacity or more, Windows 32-bit operating system may only recognize less than 3GB. We recommend a
maximum of 3GB system memory if you are using a Windows 32-bit operating system.
Connector & Ports
LAN Port (s) Realtek 8111F PCIe Gigabit LAN controller
Internal I/O Ports 1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x DVI-D
1 x D-Sub
4 x USB 2.0/1.1 ports
1 x LAN (RJ-45) port
3 x Audio jacks
2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
4 x SATA 3 Gb/s connectors
1 x 4-pin CPU fan connector
1 x 4-pin chassis fan connector 1 x Front panel audio connector
1 x System panel connector
1 x Speaker connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Clear CMOS jumper
Others
Bundled Software ASUS Anti-Surge Protection
ASUS UEFI BIOS (EZ Mode)
ASUS MyLogo2
ASUS EZ-Flash 2
ASUS Fan Xpert
ASUS AI Charger
ASUS Crash Free BIOS3
ASUS AI Suite II
ASUS Network iControl*
ASUS Webstorage
⚫The Network iControl feature does not support Windows XP/Vista operating systems
Warranty Information
Warranty 2 Years
