| KEY Features | |
| Capacity | 500GB |
| Form Factor | M.2 (2280) |
| Flash Type | Samsung V-NAND 3-bit MLC |
| Interface | PCIe Gen 3.0 x 4, NVMe 1.3 |
| Sequential R/W | Sequential Read Speed Up to 3,500 MB/s Sequential Write Speed Up to 3,200 MB/s |
| MTBF (Mean Time Between Failures) | 1.5 Million Hours Reliability |
| Physical Specification | |
| Dimensions | 80.15 x 22.15 x 2.38 (mm) |
| Weight | Max 8.0 g Weight |
| Temperature | |
| Operating Temperature | 0 - 70 ℃ Operating Temperature |
| Shock resistance | 1,500 G & 0.5 ms (Half sine) |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |

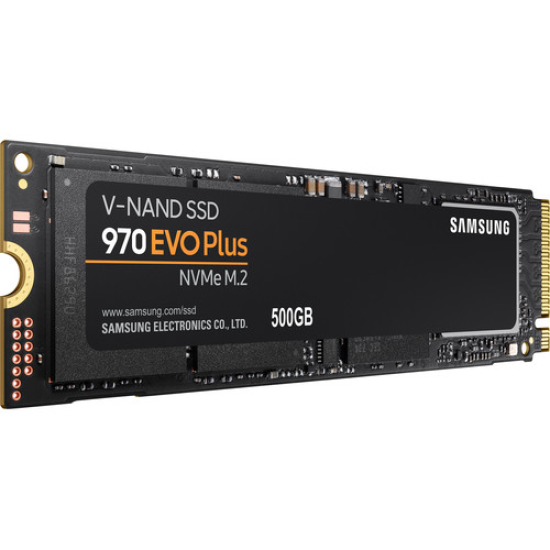

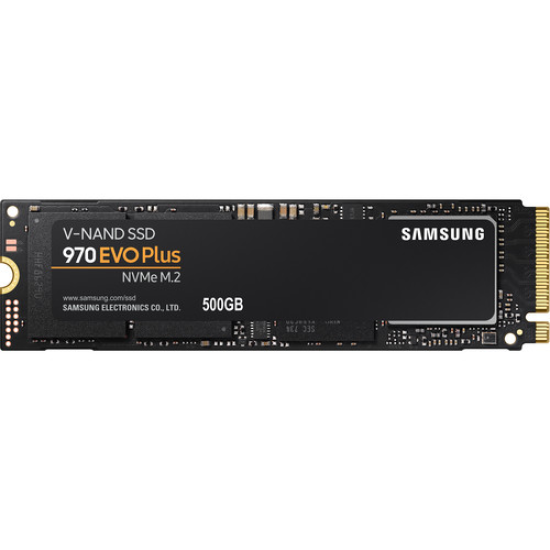

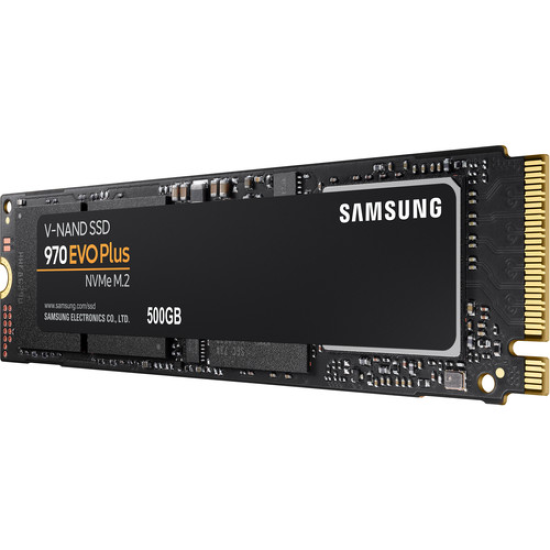

Samsung 970 EVO Plus 500GB M.2 NVMe SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 1TB.The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
