| Basic Information |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Chipset | INTEL Z890 |
| Form Factor | E-ATX (277mmx304.8mm) |
| Audio | Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel |
| Expansion Slots |
| PCI | 2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
* PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot.
** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot. |
| M.2 Socket | 8x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices |
| Memory |
| Type | DDR5 |
| Slots | 4x DDR5 UDIMM, Maximum Memory |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s |
| Maximum Memory | 256GB |
| Graphics |
| Graphics | 2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Connector & Ports |
| Display Port (s) | 2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| USB (s) | 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
* To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit. |
| LAN Port (s) | 1x Marvell® AQC113CS 10Gbps LAN
1x Intel® Killer™ E5000B 5G LAN |
| Wireless Communication module | Intel® Killer BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM |
| Supported Storage | 8x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
* Supports onboard 6x M.2 slots and additional 2x M.2 slots via M.2 card.
** M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
*** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot.
**** Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
7x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others |
| Special Features | LED FEATURE
1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch |
| Warranty Information |
| Manufacturing Warranty | 3 year warranty |

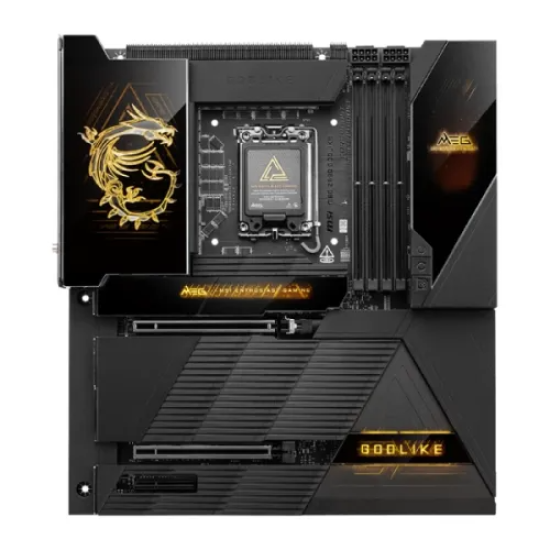

MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
The MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard is a cutting-edge powerhouse designed for tremendous performance and unparalleled dependability, making it the ideal choice for high-end PC setups. This motherboard, based on the powerful Intel Z890 chipset, supports the latest Intel Core Ultra Series 2 processors via its LGA 1851 socket, offering smooth compatibility and peak processing capacity. The MSI MEG Z890 GODLIKE E-ATX Motherboard features an excellent memory architecture that supports up to 256GB of DDR5 RAM and overclocking rates of up to 9200 MT/s, thanks to Intel XMP 3.0 and Dual-Channel Dual-Controller technology. Storage possibilities are unequaled, with eight M.2 slots (including PCIe Gen 5 x4 and Gen 4 x4) and four SATA 6G connectors to meet a wide range of storage requirements. The MSI MEG Z890 GODLIKE Motherboard's graphics and connectivity are future-proofed with two Thunderbolt 4 ports that enable DisplayPort 2.1 for 8K at 60Hz or 4K at 120Hz visuals. Additional features include dual PCIe 5.0 slots for high-performance GPUs, powerful networking (10Gbps and 5Gbps LAN), and Intel Killer Wi-Fi 7. The Realtek ALC4082 Codec and ESS9219Q DAC deliver exceptional audio performance, while several USB ports, including USB-C 20Gbps, enable unparalleled connection. The MSI MEG Z890 GODLIKE Motherboard, including superior RGB lighting, a Dynamic Dashboard III, and robust cooling, redefines what is possible in a current MSI Motherboard, providing enthusiasts with unsurpassed performance and style.
