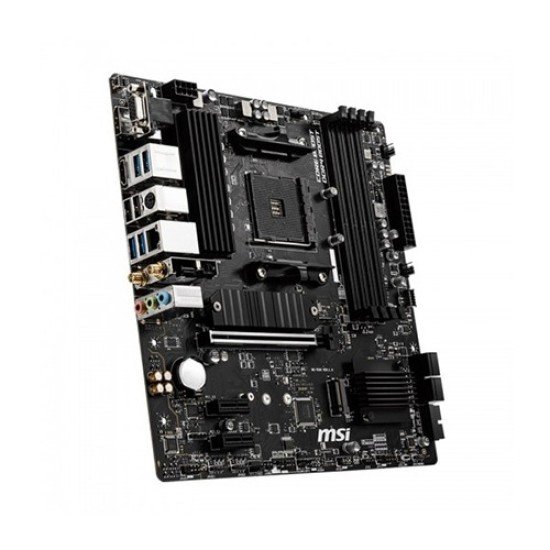

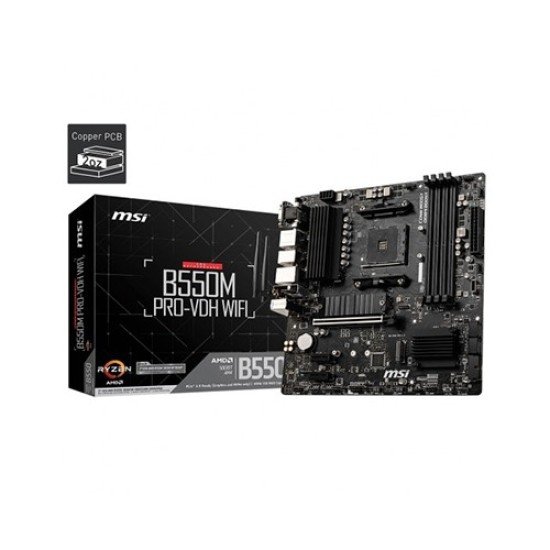

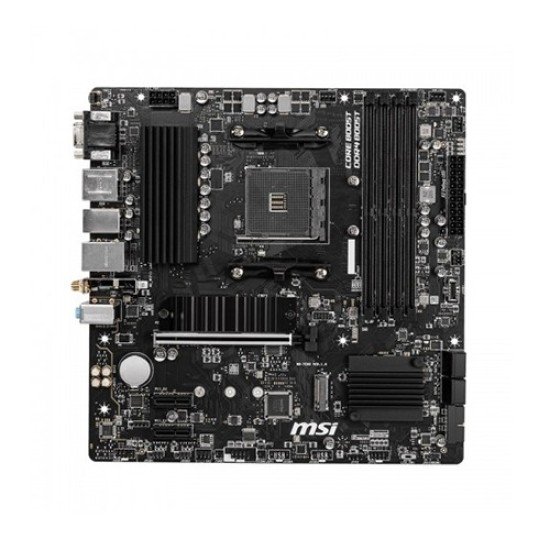

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
Save: 1300৳
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
  • Discount Price:
    15,200৳
  • Regular Price:
    16,500৳
  • Stock:
    In Stock
  • Brand: MSI
  • Model:
    MSI B550M Pro-VDH WiFi
Based on 0 reviews. - Write a review

Payment Options

Buy Now
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • M.2 SHIELD FROZR
  • Supports DDR4 4400+ (OC)
  • PCB with 2OZ Thickened Copper
View more info
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।

Related Product

MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard | GAMING MOTHERBOARD
Quickview
MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard | GAMING MOTHERBOARD
45,299৳ 49,499৳
Ex Tax:45,299৳
Add to Cart Add to Wish List Compare this Product
Specification
Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
Form Factor Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
2x PCIe 3.0 x1 slots
M.2 Socket 2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Graphics
Graphics 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory 16GB
Memory
Type Dual-channel memory architecture
Slots 4x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Maximum Memory 128GB
Connector & Ports
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
Display Port (s) 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
HDMI 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
USB (s) AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek 8111HN Gigabit LAN controller
Supported Storage AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x TPM module connector
Others
Special Features WIRELESS LAN & BLUETOOTH:
Intel Dual Band Wireless-AC 3168-
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth
2.1,2.1+EDR,3.0,4.0,BLE,4.2
Warranty Information
Warranty 03 Years Warranty
