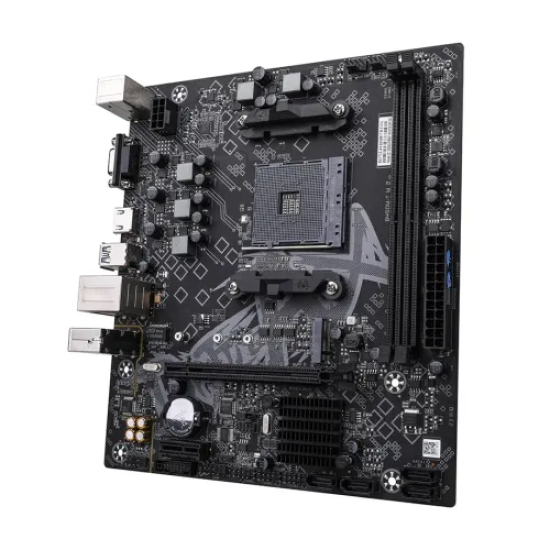

Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard

Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Save: 900৳
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard
  • Discount Price:
    7,600৳
  • Regular Price:
    8,500৳
  • Stock:
    In Stock
  • Brand: Colorful
  • Model:
    BATTLE-AX B450M-T M.2 V14

Payment Options

Key Features

  • Model: BATTLE-AX B450M-T M.2 V14
  • Supported CPU: Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen for Socket AM4
  • Supported RAM: 2x DDR4 Up to 3600(OC) Max. 64GB
  • Graphics Output: 1x HDMI 2.0, 1x VGA
  • Features: 1x M.2 slot, 1x RTL8111H Gigabit Ethernet Card
অনলাইনে অর্ডার করতে হলে, পণ্য ভেদে নির্দিষ্ট পরিমাণ টাকা অগ্রিম প্রধান করতে হবে। প্রোডাক্টের অবশিষ্ট টাকা, ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন। প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদেরকে কল করুন অথবা আমাদের হোয়াটসঅ্যাপে এ যোগাযোগ করুন।
Specification
Basic Information
BIOS 128M UEFI, support multiple languages
Supported CPU Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
Chipset AMD B450
Form Factor M-ATX 220mmx195 mm
Audio Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels
Expansion Slots
PCI 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot
M.2 Socket 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory Supports Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology
Maximum Memory Up to 64GB of memory (a single socket can support up to 32 GB of memory)
Connector & Ports
Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
VGA (s) 1×VGA interface
HDMI 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
USB (s) 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces
LAN Port (s) 1×Gigabit network interface RTL8111H Gigabit Ethernet Card
Supported Storage 1x M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)
Internal I/O Ports Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/output/microphone) On board : -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×Debug light pin
Others
Special Features Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Warranty Information
Manufacturing Warranty 03 years
Description

Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard

The Colorful BATTLE-AX B450M-T M.2 V14 AM4 Motherboard is based on the AMD B450 chipset. It supports Ryzen series CPUs via the AM4 socket, making it an excellent choice for gaming, productivity, and everyday computing. This Colorful BATTLE-AX B450M-T M.2 V14 mATX motherboard features two DDR4 memory slots that support up to 64GB of memory and speeds ranging from 2133 MHz to an impressive 3600 MHz (OC). It also supports XMP profiles and dual-channel memory technologies, allowing customers more flexibility and performance control. The colorful BATTLE-AX B450M-T M.2 V14 Motherboard has one M.2 slot for PCIe 3.0 x4 NVMe SSDs and four SATA 6Gb/s ports, providing many fast storage options for current configurations. This Colorful Motherboard's rear I/O layout is designed for convenience, with four USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, HDMI 2.0 with up to 4K 60Hz output, VGA, a Gigabit Ethernet port, PS/2 support, and three audio jacks powered by the Realtek ALC897 codec with 5.1-channel audio. Users will find many extension and connectivity options inside, as well as a colorful BATTLE-AX B450M-T M.2 V14 Motherboard with CPU and system fan pins, USB headers, a COM port pin, front panel audio, debug lights, and a clear CMOS jumper. The motherboard also has a PCIe 3.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for extra devices. The Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard, with its 128M UEFI BIOS that supports different languages, provides easy tuning and dependable power management. Its features, including wake-on-LAN, USB wake-up, and system monitoring, make it a reliable choice for both home and office builds. This Colorful Motherboard's mATX design, which measures 220mm x 195mm, makes it ideal for tiny yet powerful computers.

Buy Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard from ONE STOP SOLUTION

In Bangladesh, you can get original Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard From ONE STOP SOLUTION. We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit ONE STOP SOLUTION Shop to get yours at the lowest price. The Colorful BATTLE-AX B450M-T V14 AMD B450 AM4 mATX Motherboard comes with 3 years of warranty.
